Operating Environment

Temperature 10-35OC (primarily limited by the kiosk processor) Humidity 20-80% Non-Condensing Ventilation Natural Convection Cooling

Mains Input

Standard 220-240VAC ±10% 50Hz Power 300W average (500W max.) excluding internal power outlet Internal Auxiliary DC Supply Rails Auxiliary DC Supply Rails (for peripheral equipment): 5V, 12V & 24V

LCD Monitor

Screen Size 15" Angle: 75O (from horizontal) Viewing Angle 60O/60O/50O/50O (L/R/T/B) Contrast Ratio 300:1

Keyboard & Trackball

Limited Key Ruggedised Keyboard Tactile Buttons Stainless Steel Trackball

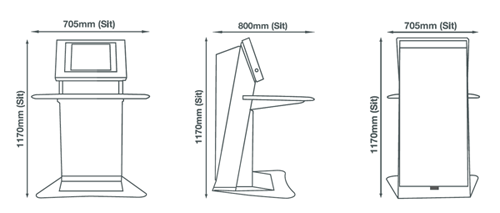

Dimensions

Height 1170mm (Sit) 1350mm (Stand) Width 705mm (Sit) 690mm (Stand) Depth 800mm (Sit) 640mm (Stand) Weight 104kg (110kg with transport packaging) (Sit) 105kg (111kg with transport packaging) (Stand)

Guardian Kiosk Management Module**

Printer Monitoring: Paper Low / Out / Jam CPU / Application Heartbeat Monitoring Door Sensor / Auxiliary Device Monitoring

Options*

Guardian Kiosk Management Module* / High Quality SAW 15” Touchscreen / 110V Switchable PSU* / A4/receipt Thermal Printer* / Slim or Desktop From Factor PC* / Motorised Magnetic / Smart Card Reader* / High Quality Audio System* / Stereo Headphones Port*

Applications

Information, Promotions, Form completion, HR Applications, Transactional & Job Search
